When the personnel enter, the fan begins to blow quickly, and when the personnel exit, the fan automatically switches to a low-speed self-cleaning cycle (10-99 seconds adjustable), which can keep the air shower unit clean for a long time.

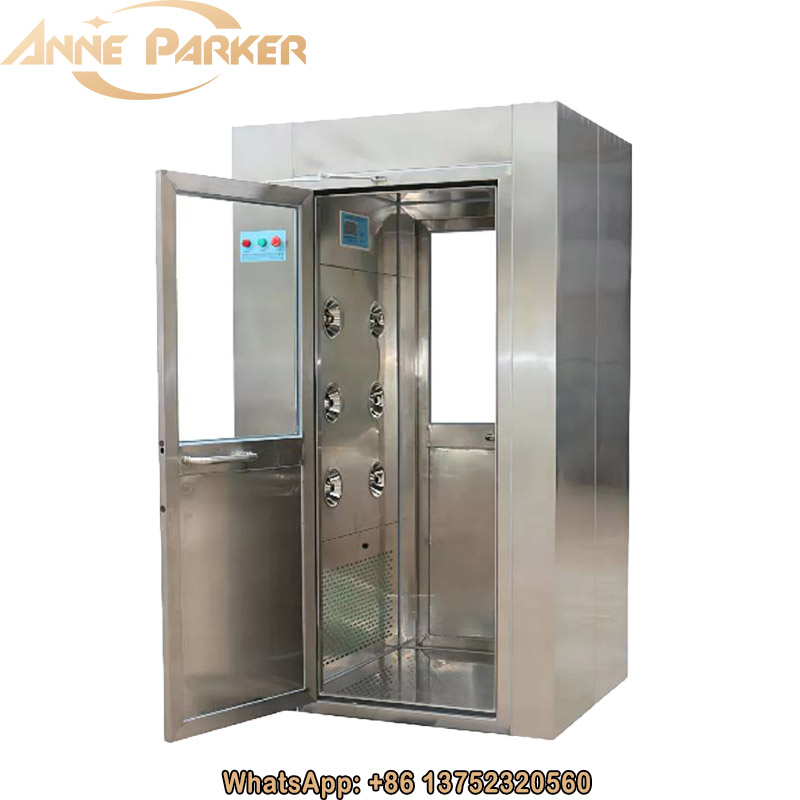

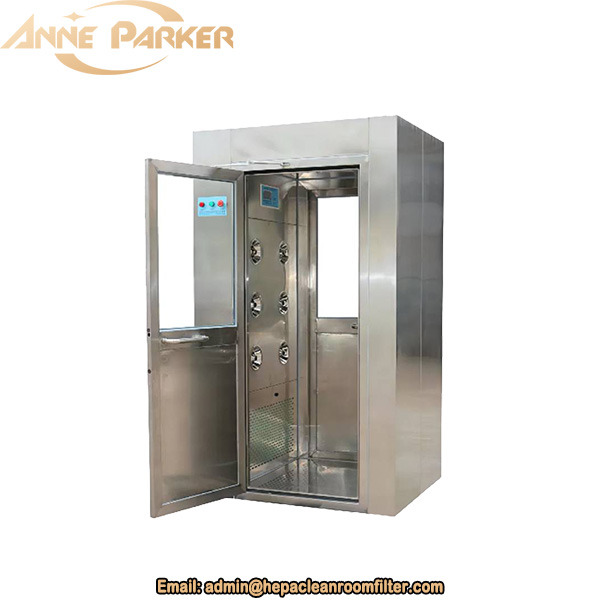

Industrial Air Shower System Unit Clean Room Design Manufacturer

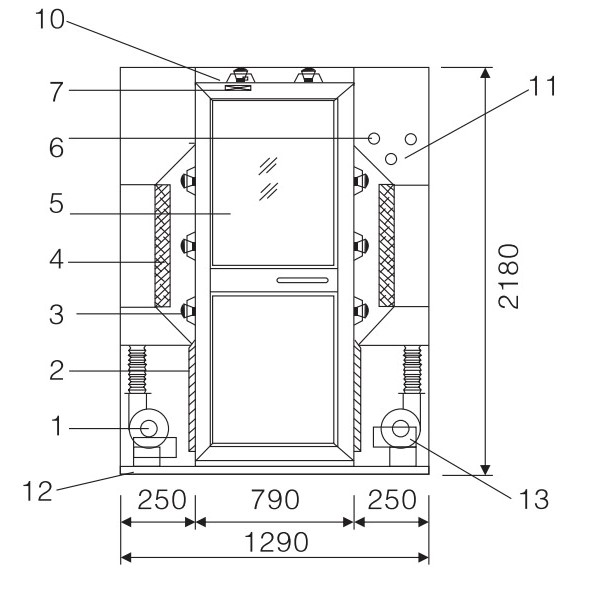

Industrial air shower unit Instructions:
1. Double-speed fan 2. Primary efficiency filter (with protection net) 3. Stainless steel nozzle (360 degree rotation) 4. Mini pleat HEPA filter 5. Tempered glass window 6. Indicator 7. Entrance door closers 8. Infrared sensor 9. Control panel (with plexiglass cover) 10. Magnetic lock 11. Emergency stop switch (total 3) 12. Anchor bolts (M12) 13. Pressure relief opening
Air shower clean room design Optional accessories:
1. All stainless steel box 2. Stainless steel inner wall 3. Ultraviolet germicidal lamp 4. Antistatic device 5. Automatic door device 6. Differential pressure meter 7. Differential pressure gauge
Features of Air shower system double-speed fan
When the personnel enter, the fan begins to blow quickly, and when the personnel exit, the fan automatically switches to a low-speed self-cleaning cycle (10-99 seconds adjustable), which can keep the air shower unit clean for a long time, and the cleaning effect is better than that of the traditional clean room.
|
Model |
AN-1200-1 |
AN-1200-2 |
AN-1200-3 |
|

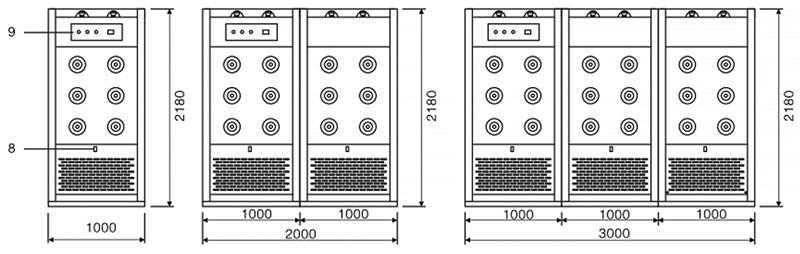

Dimension size (mm) |
W1290*L1000*H2180 |
W1290*L2000*H2180 |
W1290*L3000*H2180 |
|
Air shower size (mm) |
W790*L860*H1930 |
W790*L1860*H1930 |
W790*L2860*H1930 |
|
Nozzle wind speed (m/s) |
20~25 |
||
|
Nozzle number |
12 |
24 |
36 |
|
Shower time (s) |
The factory setting is 10s, 10~99s adjustable |
||
|
Box material |
1.2mm cold-roll steel sheets / stainless steel 304 |
||
|
Door material |
Stainless steel |
||
|
Baseplate |
Stainless steel |
||
|
HEPA filter size |
610*610*69*2 |
610*610*69*4 |
610*610*69*6 |
|
Filtration efficiency |
99.99@0.3μm |
||
|
Fan power (W) |
750*2 |
750*4 |
750*6 |
|
LED lamp power |
12*1 |
12*2 |
12*3 |
|
Power supply |
380V 50Hz |
||
|
Applicable number of persons |
1-2 |
2-4 |
3-6 |
Note: Anne Parker is a professional air shower clean room manufacturer, non-standard air shower unit can be customized according to customer's requirements.
