Clean Room Laminar Air Flow Hood LAF Unit Supplier
The laminar flow hood is a highly efficient localized air purification device engineered to isolate critical production processes from ambient contamination. Its primary purpose is to provide an ultra-clean micro-environment, effectively safeguarding sensitive products from particulate matters and cross-contamination.
By utilizing a high-performance fan mounted in the top pressurized compartment, ambient air drawn from the clean room is forced through a premium HEPA filter. This continuous process delivers a vertical, unidirectional laminar air flow directly into the critical work zone, establishing a stable ISO 5 (Class 100) cleanliness environment. The downflow exhaust air is then discharged from the bottom of the enclosure and safely returned to the surrounding cleanroom area. Structurally, a standard laf unit is systematically composed of a robust casing box, an integrated fan blower unit, high-efficiency HEPA filtration, an airflow damping/equalizing layer, and professional LED illumination.
The fundamental operational mechanism of a clean laminar flow hood relies on uniform air distribution. After the raw air passes through the high-efficiency HEPA filter at a strictly controlled velocity, it moves through a specialized flow-leveling damping layer. This structural design transforms the air stream into a uniform, vertical, one-way laminar air flow, continuously sweeping away microscopic dust particles and ensuring that the localized working zone consistently meets rigorous pharmaceutical and industrial process requirements.

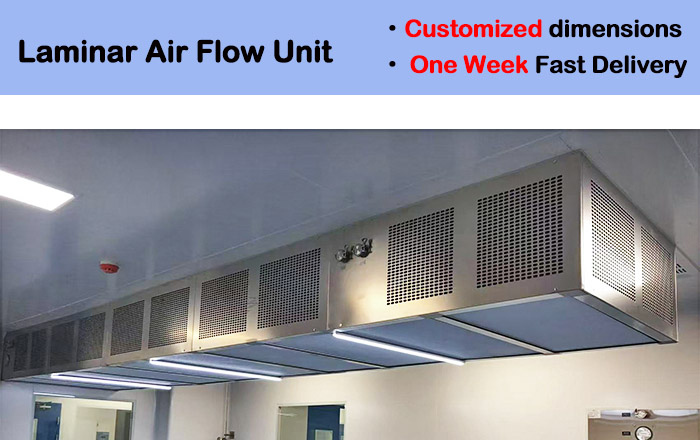

A cleanroom laminar air flow setup offers flexible configurations to suit diverse architectural layouts. Based on the ventilation setup, it is available in two distinct types: an internal fan configuration or an external duct connection system. In terms of physical installation, the laf unit supports both ceiling-suspended hanging mounts and floor-standing landing support structures.
Compared to constructing a full-scale civil or modular cleanroom, investing in a targeted laminar flow hood provides substantial cost savings, rapid deployment, minimal building requirements, easy structural relocation, and outstanding energy efficiency. Consequently, it is widely implemented across precision machinery, microelectronics, pharmaceutical manufacturing, sterile food processing, and fine chemical testing laboratories.
Flexible Modular Design: Can be operated as an independent, standalone clean workstation or interconnected in series to form an integrated, continuous class 100 assembly line.
Exceptional Cost Efficiency: Compared to traditional civil or assembled Class 100 clean rooms, this compact laf unit features significantly less initial investment, quicker installation times, and minimized long-term operational overhead.
Premium Material Selection: To comply with diverse sanitary standards, the exterior casing box can be customized using high-quality color steel plates, heavy-duty powder-coated steel, or premium SUS304/SUS316L stainless steel plates.
As professional cleanroom equipment manufacturers, our laminar air flow systems are engineered with precision technical specifications:
Filtration Cleanliness Rating: ISO 5 / Class 100 (conforming to US Federal Standard 209E)
Dust Particle Criteria: $\ge 0.5\,\mu\text{m}$ particle count $\le 3.5\text{ particles/liter}$ in the working area
Average Air Velocity: $0.35 \sim 0.54\text{ m/s}$ (fully adjustable to maintain proper pressure dynamics)
Operational Noise Level: $\le 65\text{ dB(A)}$ (measured under standard acoustic load)
Standard Power Supply: $220\text{V / 50Hz}$ (custom voltage setups available for global markets)
