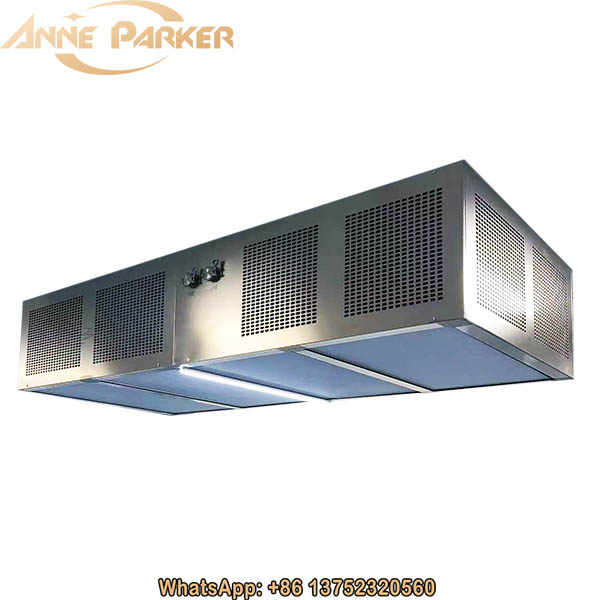

Cleanroom Class A Laminar Flow Hood

Cleanroom Class A Laminar Flow Hood

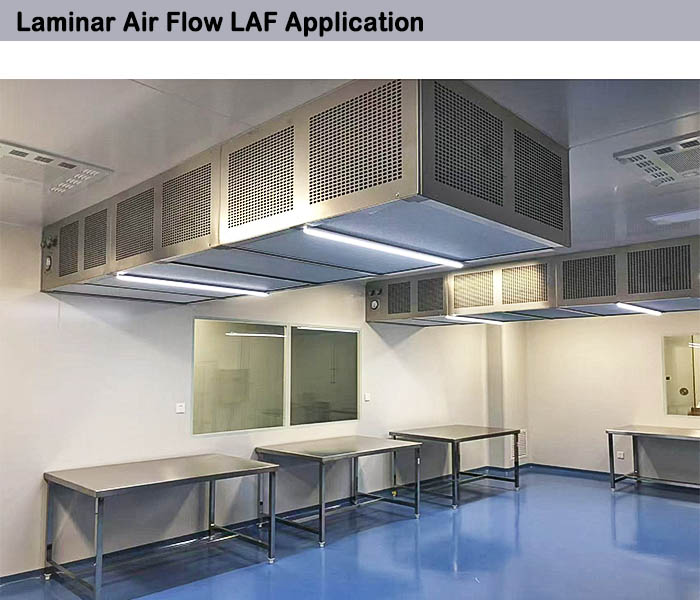

    Class A gel seal laminar flow hood is a kind of air purification equipment that can provide local high cleanliness. It is mainly composed of box, fan, primary efficiency filter, high efficiency HEPA filter, lamps, flow film, control and so on. The product can be suspended, but also ground support, compact structure, easy to use, the chassis is made of stainless steel SUS304, sheet metal bending molding, beautiful and clean, easy to clean and disinfect. Class A laminar flow covers can be used individually, or multiple connections can be made to form a banded clean area.

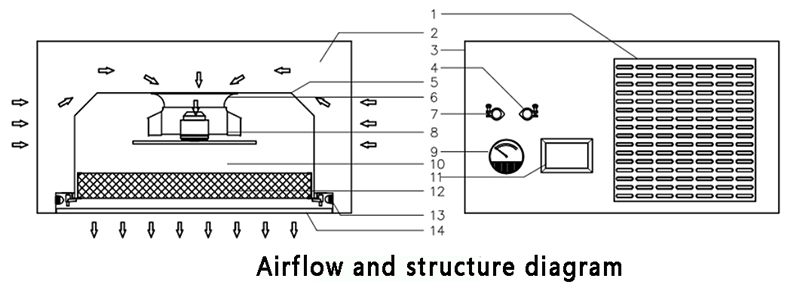

Instructions:

1. Return air mesh plate    2. Negative pressure area   3. Box  4. PAO injection port      5. Plenum  6. Fan deflector  7. DOP test port    8. Fan  9. Pressure differential meter  10. Positive pressure area      11. Control panel       12. Gel seal HEPA filter     13. Lighting fixture     14. Flow film

Product advantages

1. Fan with long life, low noise, maintenance-free, small vibration;

2. Double-layer negative pressure structure, no leakage risk;

3. Excellent air uniform distribution performance;

4. Automatic constant or graded adjustment of wind speed;

5. High quality gel seal, high cleanliness;

6. Consistent inside and outside, clean and without dead corners;

Technical parameters
