Intelligent air shower top-down blowing through the top, the dust on the human body is quickly taken away by the bottom mesh plate under the joint action of gravity, so as to achieve the best blowing effect.

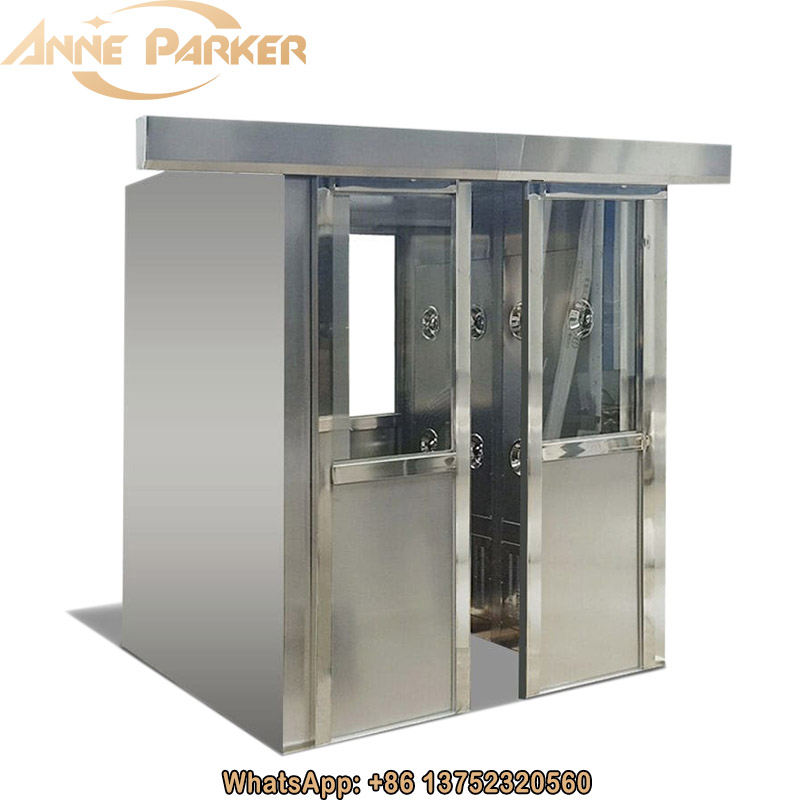

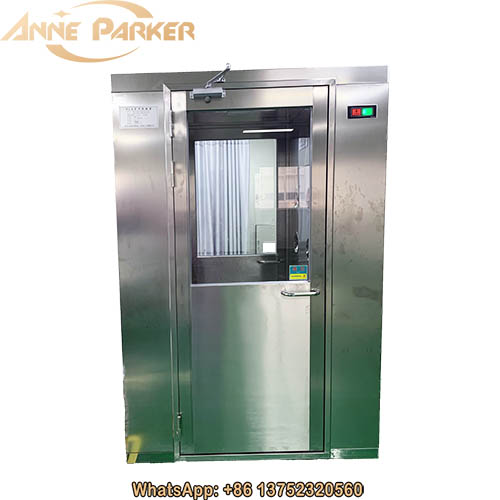

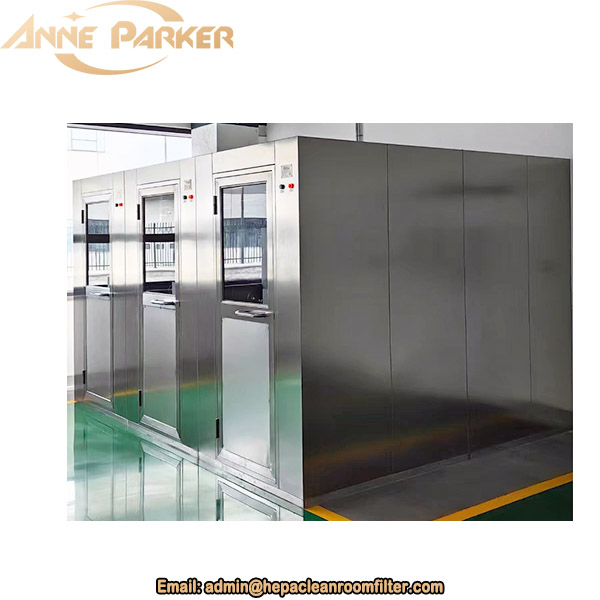

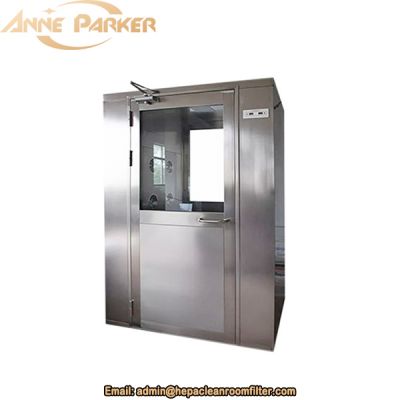

Intelligent Personnel Air Shower Chamber Design Manufacturer
Air shower chamber Features
The traditional side-blowing personnel air shower blowing process is turbulence, blowing to the human body is easy to form eddy currents, blowing dust is not easy to be taken away immediately, causing two dust. Three blow air shower design top-down blowing through the top, the dust on the human body is quickly taken away by the bottom mesh plate under the joint action of gravity, so as to achieve the best blowing effect.
|
Model |
AN-1200-1 |
AN-1200-2 |
AN-1200-3 |
|

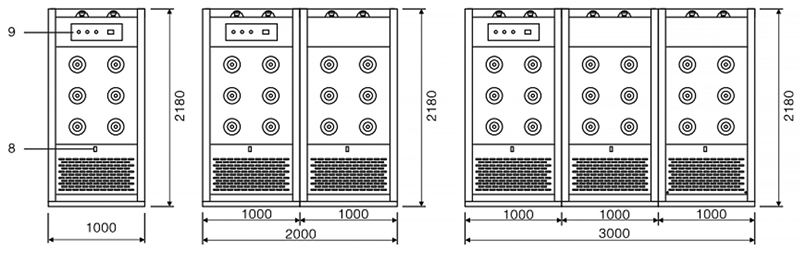

Dimension size (mm) |
W1290*L1000*H2180 |
W1290*L2000*H2180 |
W1290*L3000*H2180 |
|
Air showing size (mm) |
W790*L860*H1930 |
W790*L1860*H1930 |
W790*L2860*H1930 |
|
Nozzle wind speed (m/s) |
20~25 |
||
|
Nozzle number |
16 |
32 |
48 |
|
Shower time (s) |
The factory setting is 10s, 10~99s adjustable |
||
|
Box material |
1.2mm cold-roll steel sheets / stainless steel 304, electrostatic spraying on the surface |
||
|
Door material |
Stainless steel |
||
|

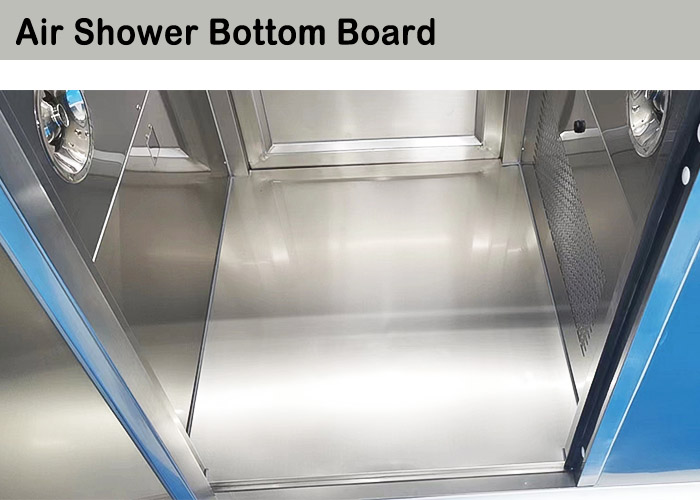

Baseplate |
Stainless steel |
||
|
HEPA filter size |
610*610*69*2 |
610*610*69*4 |
610*610*69*6 |
|
Filtration efficiency |
99.99@0.3μm |
||
|
Fan power (W) |
750*2 |
750*4 |
750*6 |
|
LED lamp power |
12*1 |
12*2 |
12*3 |
|
Power supply |
380V 50Hz |
||
|
Applicable number of persons |
1-2 |
2-4 |
3-6 |
Note: Anne Parker is a professional air shower manufacturer and provides air shower design services. Air shower chamber can be customized according to customer's requirements.
Intelligent air shower Instructions:

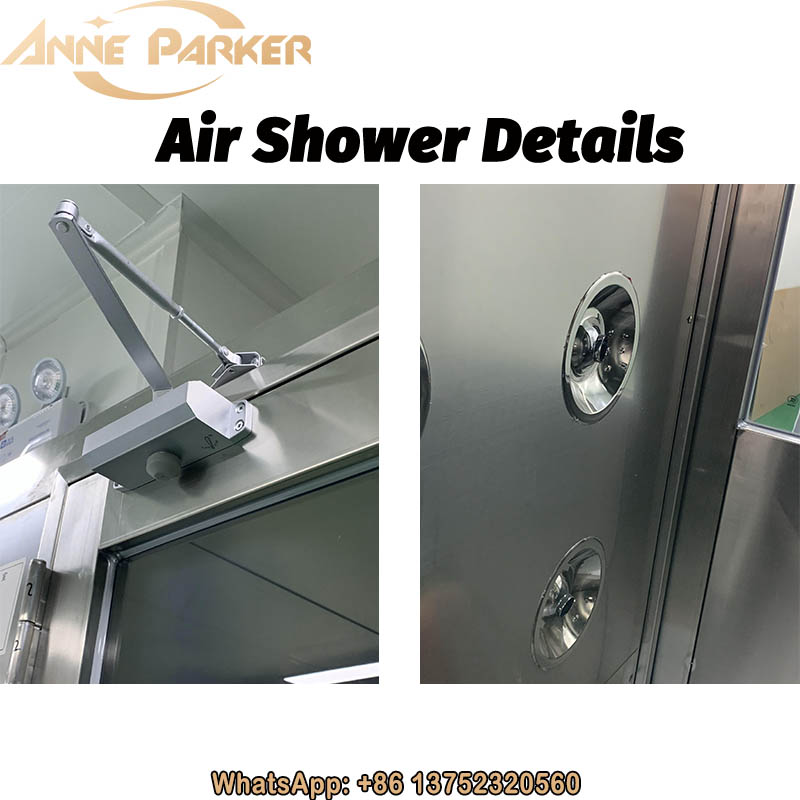

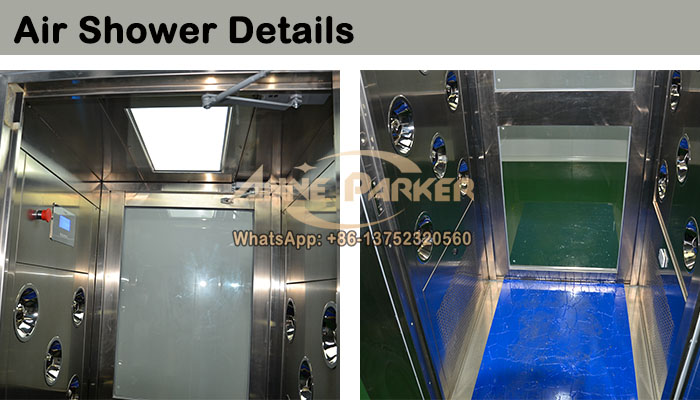

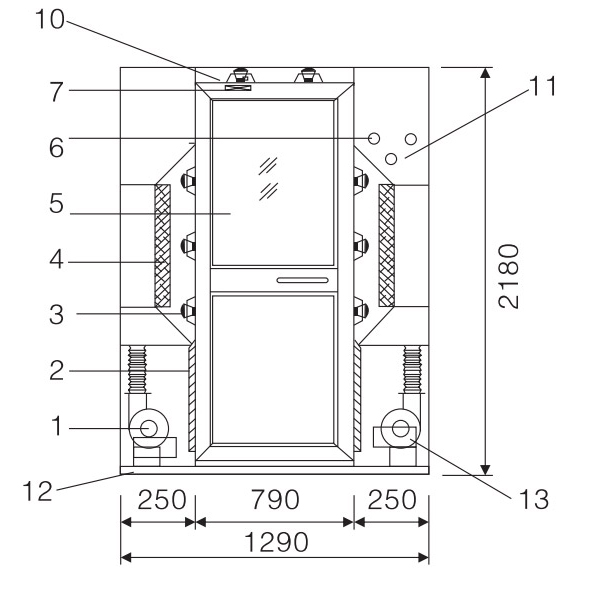

1. Double-speed fan 2. Primary efficiency filter 3. Stainless steel nozzle (360 degree rotation) 4. Mini pleat HEPA filter 5. Tempered glass window 6. Indicator 7. Entrance door closers 8. Infrared sensor 9. Control panel (with plexiglass cover) 10. Magnetic lock 11. Emergency stop switch (total 3) 12. Anchor bolts (M12) 13. Pressure relief opening
Air shower design Optional accessories:
1. All stainless steel box 2. Stainless steel inner wall 3. Ultraviolet germicidal lamp 4. Antistatic device 5. Automatic door device 6. Differential pressure meter 7. Differential pressure gauge
