Decontamination air shower is a kind of local purification equipment with strong versatility, which is installed between clean room and non-clean room.

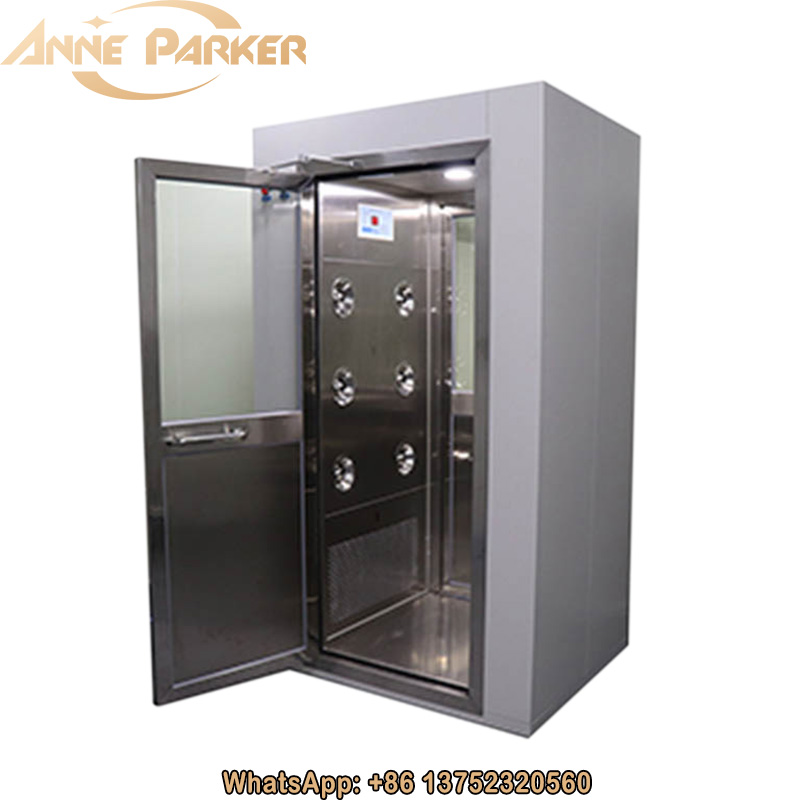

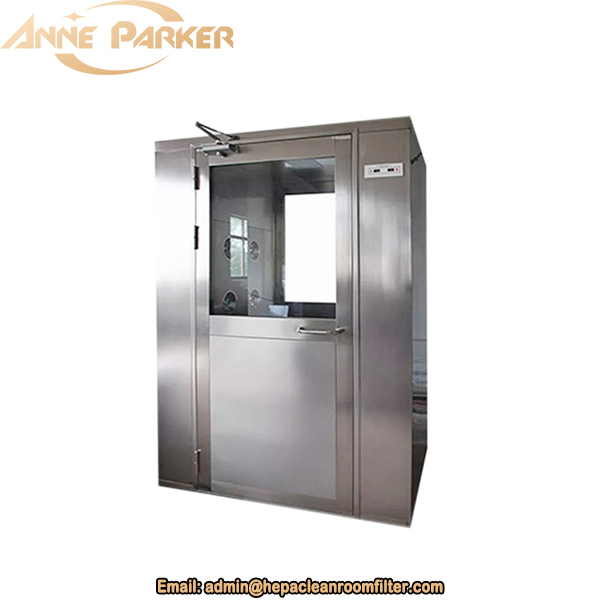

Stainless Steel Decontamination Air Shower Cleanroom Cabinet Factory

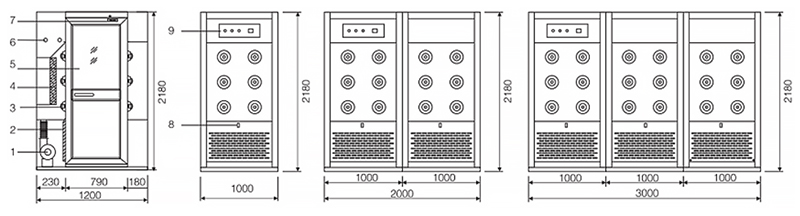

Decontamination air shower Instructions:

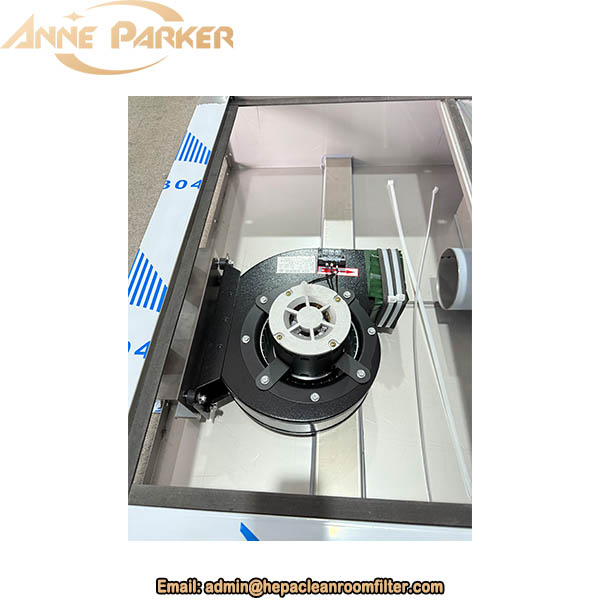

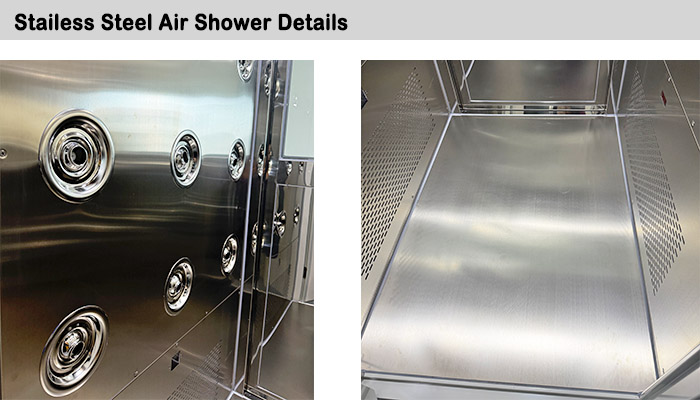

1. Fan 2. Primary filter 3. Stainless steel nozzle 4. HEPA filter 5. Tempered glass window 6. Indicator 7. Door closer 8. Infrared sensor 9. Control panel
Air shower cabinet Optional accessories:
1. All stainless steel box 2. Stainless steel inner wall 3. Ultraviolet germicidal lamp 4. Anti-static device 5. Automatic door device
Stainless steel air shower cleanroom Technical parameters
|
Model |
AN-1200-1 |
AN-1200-2 |
AN-1200-3 |
|
Dimension size (mm) |
W1200*H1000*2180 |
W1200*H2000*2180 |
W1200*H3000*2180 |
|
Air shower size (mm) |
W790*H860*1930 |
W790*H1860*1930 |
W790*H2860*1930 |
|
Nozzle wind speed (m/s) |
18~22 |
||
|
Nozzle number |
12 |
24 |
36 |
|
Shower time (s) |
The factory setting is 10s, 10~99s adjustable |
||
|
Box material |
1.2mm stainless steel 304 |
||
|
Door material |
Stainless steel |
||
|
Baseplate |
Stainless steel |
||
|
HEPA filter size |
610*610*120*1 |
610*610*120*2 |
610*610*120*3 |
|
Filtration efficiency |
99.99%@0.3μm |
||
|
Fan power |
750*1 |
750*2 |
750*3 |
|
LED lamp power |
12*1 |
12*2 |
12*3 |
|
Power supply |
380V 50Hz |
||
|
Applicable number of persons |
1-2 |
2-4 |
3-6 |

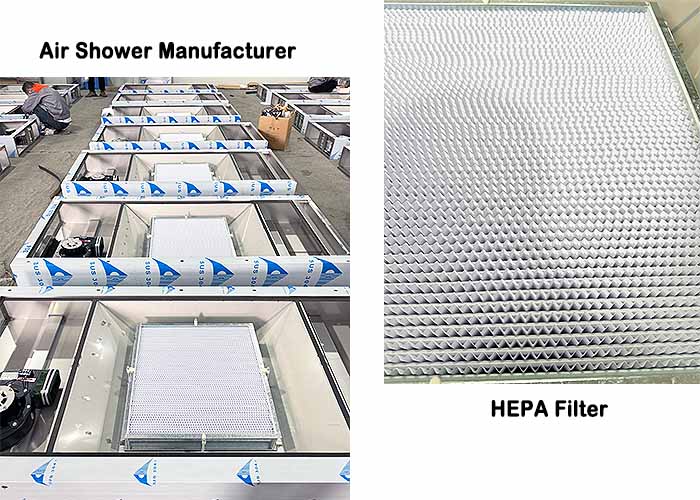

Note: Anne Praker is an air shower factory with over 20 years manufacturing experience, non-standard air shower cleanroom can be customized according to customer's requirements.
