Specifications: W2000×D1300×H2180mm (outside) W1500×D1160×H1980mm (inner)
Box and inner wall material:
a. The cabinet is made of 304 sanded stainless steel plate with a natural sanding surface;
b. The inner wall is made of 304 sanded stainless steel plate, and the surface is naturally sanded;
c. Without an inner bottom plate, it is convenient to pass the cart.

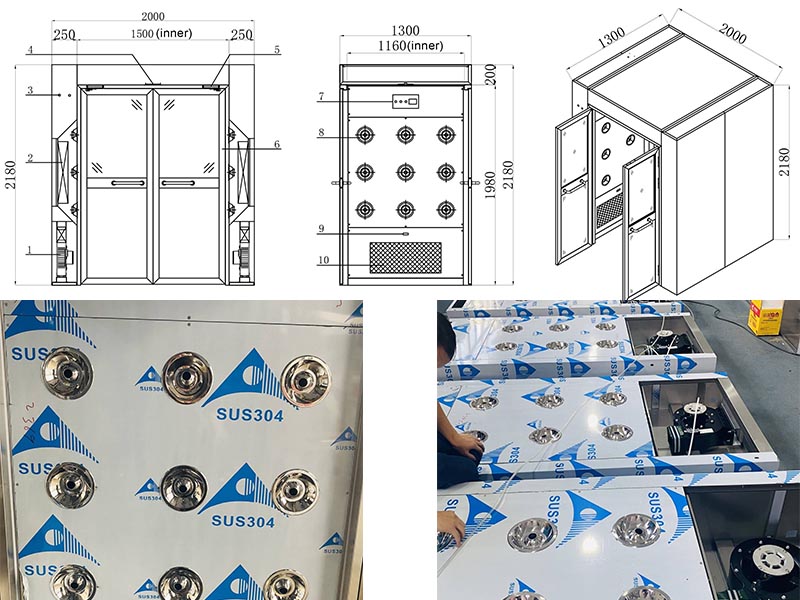

Air shower clean room Specifications:
W2000×D1300×H2180mm (outside)
W1500×D1160×H1980mm (inner)
Air shower cleanroom Configuration and technical parameter description:
1. Box and inner wall material:
a. The cabinet is made of 304 sanded stainless steel plate with a natural sanding surface;
b. The inner wall is made of 304 sanded stainless steel plate, and the surface is naturally sanded;
c. Without an inner bottom plate, it is convenient to pass the cart.
2. Double-door electronic interlocking (electric lock, door sensor, and relay constitute an interlocking system).

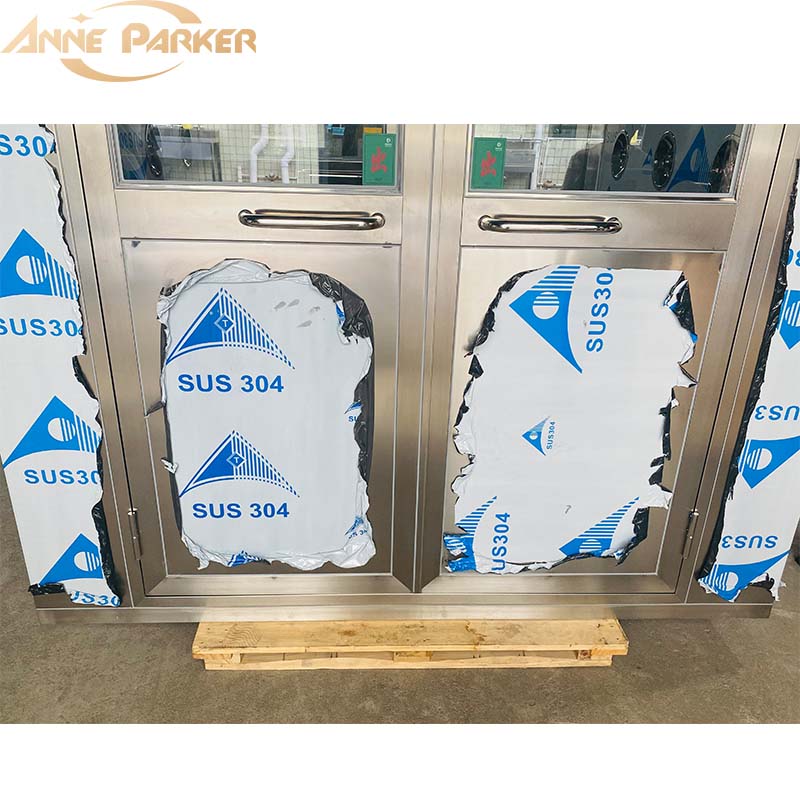

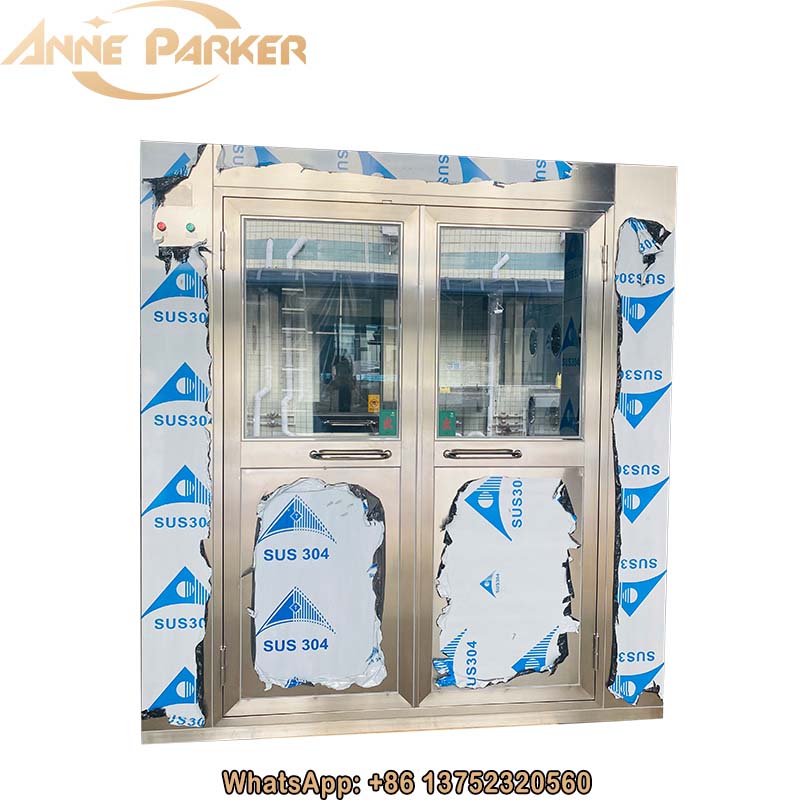

3. Air shower in pharmaceutical industry Door material:

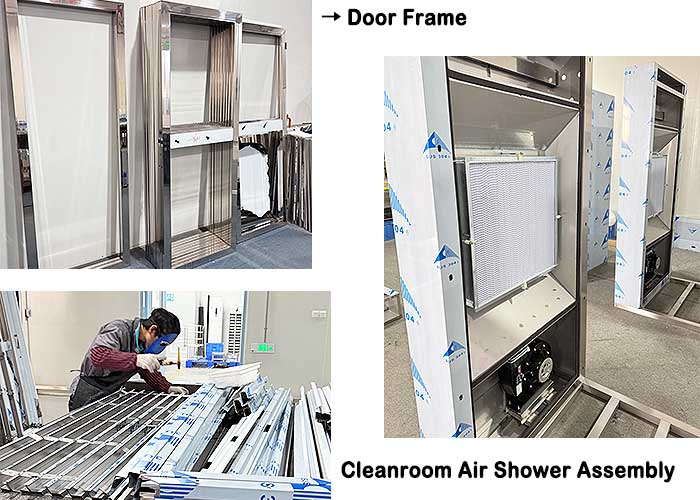

a. The door frame is made of 304 sanded stainless steel plate;
b. The door core frame is welded and made of t1.0×30×60mm 304 sanded stainless steel plate;
c. The upper half window of the door core is made of t5.0mm transparent tempered glass;
d. The lower half sealing plate of the door core is made of 304 sanded stainless steel plate.
4. Power supply: 3P / AC 380V / 50Hz / 2.5KW.
The door glass window allows you to visit the work area at any time and is convenient to use.
The efficiency of HEPA filter is: 99.95%@0.3μm.
|
1 |
Motor |
2 |
Pcs |
AC 380V/50Hz/1.1Kw |
|
2 |
HEPA Filter |
2 |
Set |
610*610*100 H13 |
|
3 |
Power working indicator light |
4 |
Pcs |
2 each at the front and rear |
|
4 |
LED lighting |
1 |
Set |
AC 220V/50HZ/12W |
|
5 |
Door closer |
4 |
Set |
Two sets each for front and back |
|
6 |

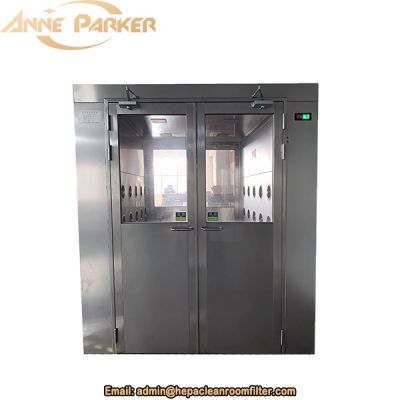

Stainless steel double door |
2 |
Set |
One door at the front and one at the front |
|
7 |
Control panel |
1 |
|
With screen display and voice prompts |
|
8 |
Stainless steel nozzle |
18 |
Pcs |
Air outlet wind speed: 20-23m/s |
|
9 |
Photoelectric Sensor |
1 |
Pcs |
With reflective plate |
|
10 |
Return air primary |
2 |
|
G3 |
Air shower cleanroom Product Features:
1. Used for the entry and exit of people or goods in high-level clean areas and low-level clean areas. Prevent unclean airflow from entering the advanced clean area;
2. Set up a blowing and purification treatment device in the work area to eliminate people dust adheres to the surface and acts as an airlock;
3. Air shower clean room is equipped with voice prompts, automatic control, infrared induction, automatic spraying of air from both sides;
4. The nozzle blowing wind speed can reach 20-23m/s, and the blowing time is adjustable from 10 to 99 seconds;

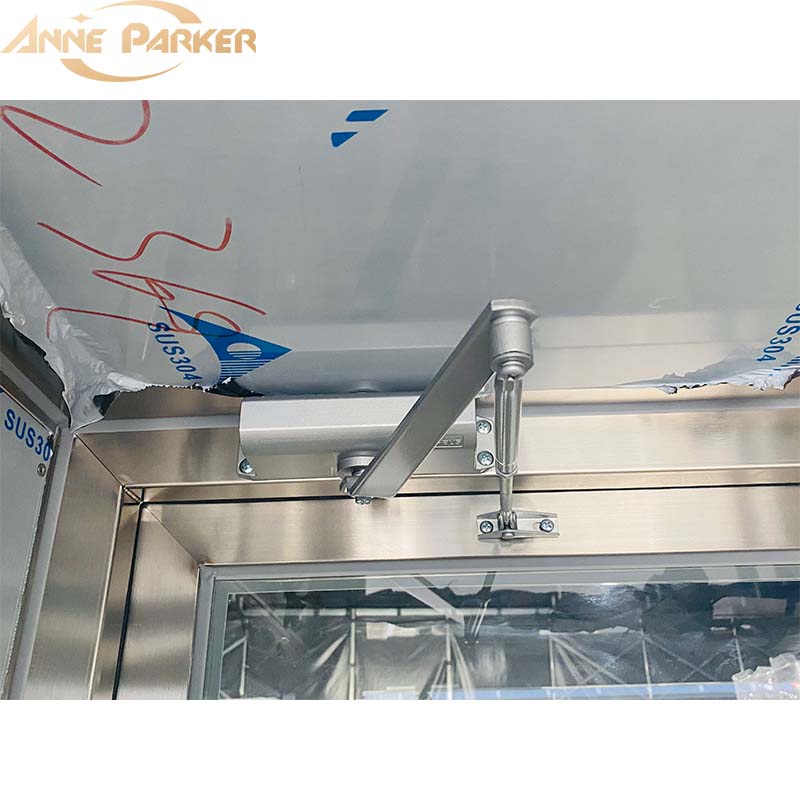

5. The door closer device of air shower in pharmaceutical industry ensures that the door cannot open by itself when it is not in operation;
6. The interlocking device ensures that both doors cannot be opened at the same time during working conditions, which is safe and reliable;
7. The bottom surface of the air shower cleanroom is made of stainless steel plate, which does not produce dust, is wear-resistant, corrosion-resistant, and easy to clean;
8. The door glass window allows you to visit the work area at any time and is convenient to use;
9. The efficiency of HEPA filter is: 99.95%@0.3μm;
As a professional cleanroom air shower supplier, dimensions and materials of air shower cleanroom can be customized according to customers' requirements.
