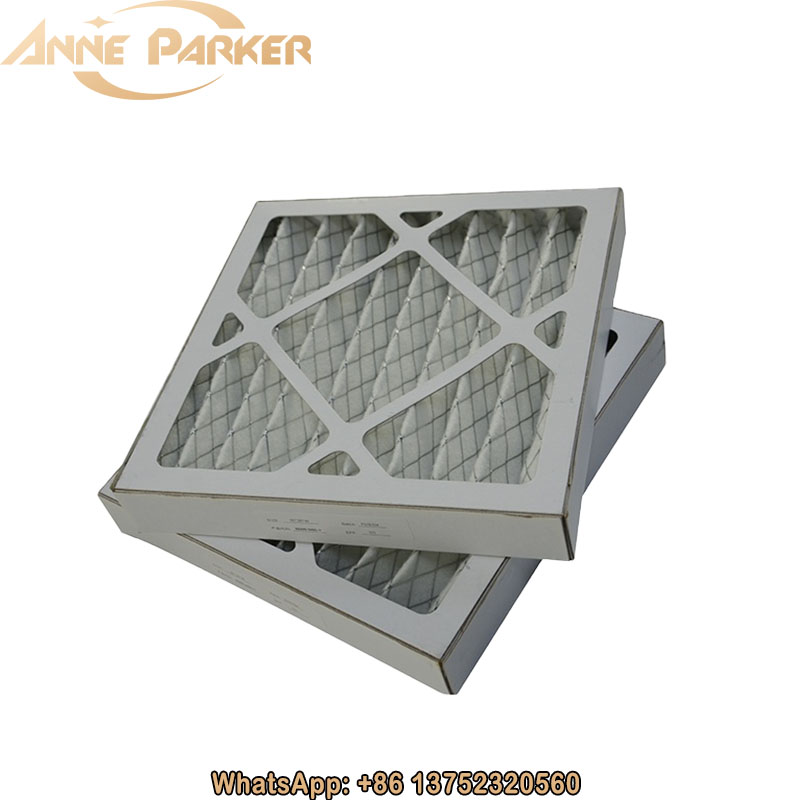

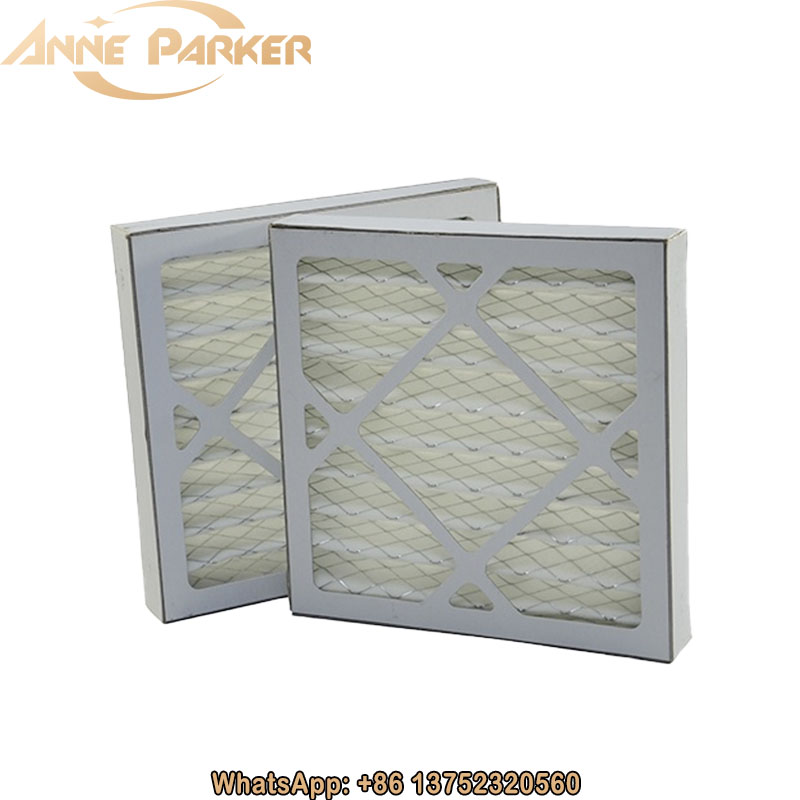

100% adhesive application, ensures filter integrity. The inside of the die cut frame is completely coated with adhesive to ensure a solid bond at all points of contact.
Plate Type Primary Efficiency Air Filter Manufacturer
Efficiency: G1, G2, G3, G4;
Features: low resistance, large air volume, long service life;
Application: Widely used in the primary filtration of air conditioning system;

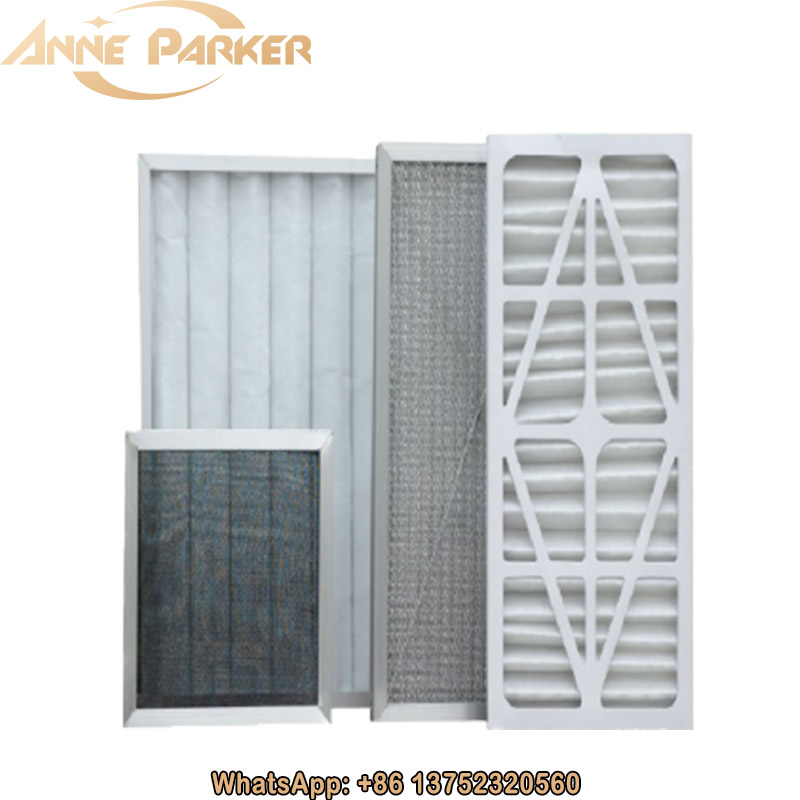

Optional: primary efficiency non-woven filter material, activated carbon filter material, metal mesh filter material, nylon mesh filter material, disposable paper frame filter.
Plate type filter compact structure, small size, light weight, easy to purge and disassembly. Not only can be installed separately but also can be stacked in front of the bag filter. The plate air filter is mainly used to filter the ≥5μm dust particles in the air conditioning system, protect the medium efficiency filter and extend the service life.
|
Product |
Plate type primary efficiency filter |
|
Frame material |
Galvanized steel/aluminum/paper frame |
|
Filter media |
PP/PET |
|
Seal |
PU sealing strips |
|
Operational condition |
Max 100％RH，80°C |
Technical parameters
|
Model |
Dimensions W*H*D(mm) |
Rated air volume (m³) |
Initial resistance (Pa) |
Efficiency |
|
FG-32 |
595*595*45 |
3200 |
≤25 ≤30 ≤45 |
G2 G3 G4 |
|
FG-27 |
595*495*45 |
2700 |
||
|
FG-16 |
595*295*45 |
1600 |
||
|
FG-22 |
495*495*45 |
2200 |
||
|
FG-13 |
495*295*45 |
1300 |
||
|
FG-8 |
295*295*45 |
800 |
