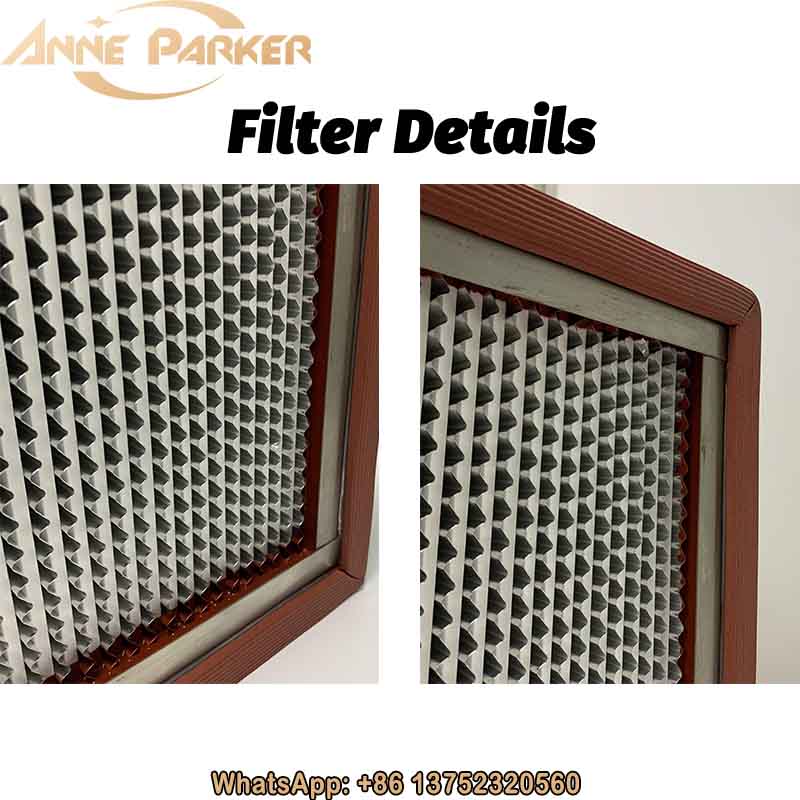

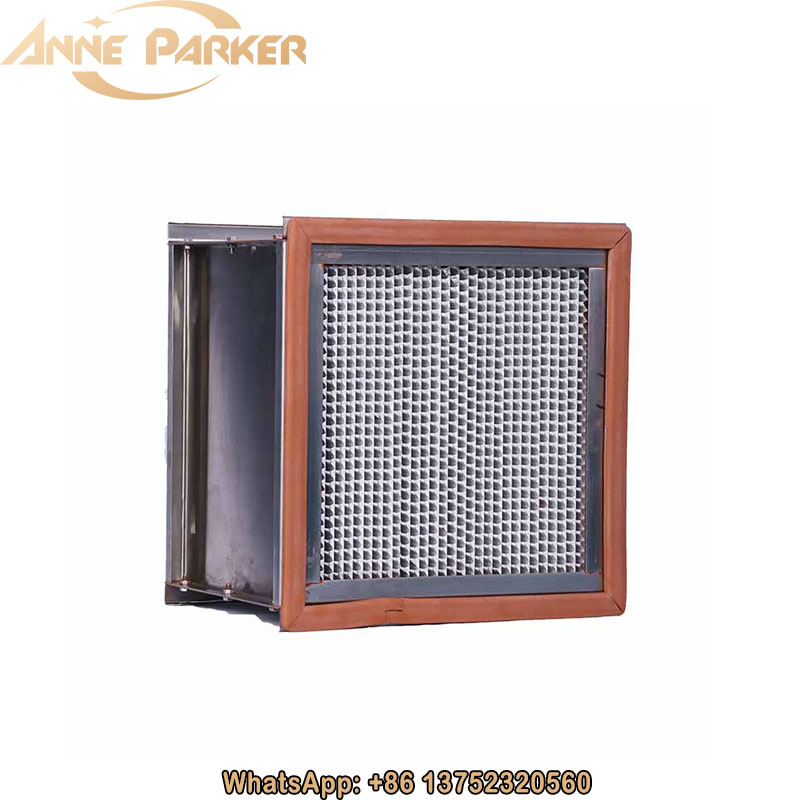

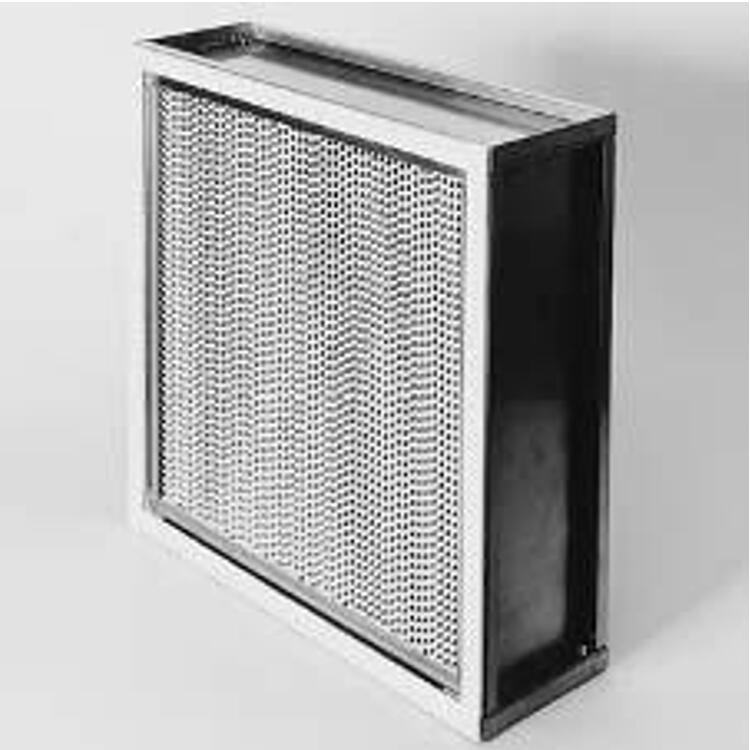

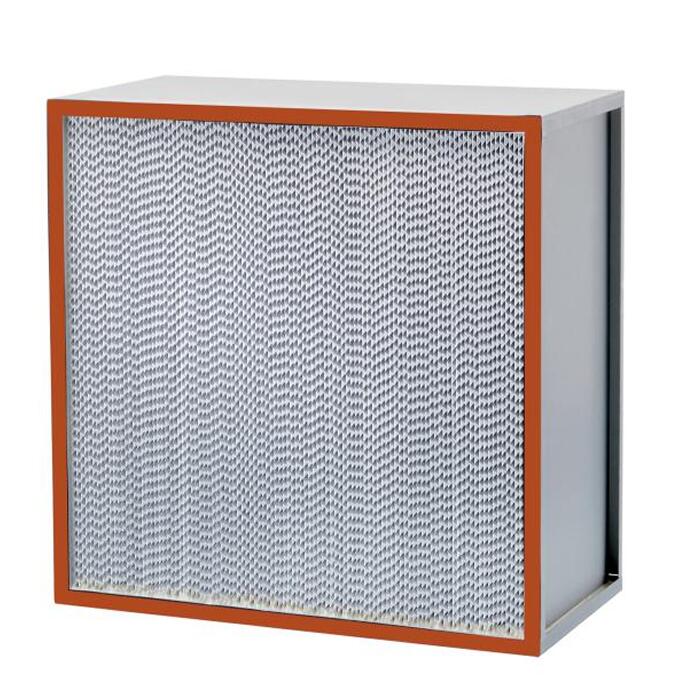

High Temperature HEPA Heat Resistant Air Filter

High Temperature HEPA Heat Resistant Air Filter

Efficiency: 99.97%@0.3um (H13), 99.99%@0.3um (H14)

Features: High temperature filters are composed of special heat-resistant materials; Stainless steel frame (frame can be made into flangeless, single flanged, double flanged structure); Operating temperature 250℃, 350℃;

Application: High temperature HEPA filters are used to eliminate air pollution in high temperature production environment and ensure filtration efficiency. High temperature air filters are widely used in semiconductor, pharmaceutical, food processing and other industries.

I. 250℃ heat resistant filter

Main applications: high-temperature purification equipment, process equipment and some special process high-temperature air supply systems, such as pharmaceutical, medical, chemical and other industries.

Efficiency: H13≥99.95%@0.3μm (normal temperature)

Filter material separation: aluminum foil corrugated plate

Filter material: glass fiber filter paper

Continuous operating temperature: ≤250℃

Gasket: high temperature resistant silicone rubber

Humidity: ≤100% RH

Sealant: high temperature resistant silicone

Recommended maximum final resistance: 500Pa

High heat-resistance filter Technical parameters

Model	Size (mm)	Air volume (m³/h)	Initial resistance (Pa)	Efficiency
HT-305-305-150-T250	305*305*150	250	250	H13
HT-610-305-150-T250	610*305*150	500	250	H13
HT-610-610-150-T250	610*610*150	1000	250	H13
HT-915-610-150-T250	915*610*150	1500	250	H13
HT-305-305-292-T250	305*305*292	435	250	H13
HT-610-305-292-T250	610*305*292	870	250	H13
HT-610-610-292-T250	610*610*292	1740	250	H13
HT-915-610-292-T250	915*610*292	2620	250	H13



II. 350℃ high temperature filter

Main applications: some high-temperature resistant purification equipment, process equipment, some special process high-temperature air supply systems,

       High-temperature sterilization tunnels, such as pharmaceutical, medical, chemical, and other industries.

Efficiency: H13≥99.95%@0.3μm (normal temperature)

 Filter material separation: aluminum foil corrugated plate

 Filter material: glass fiber filter paper

 Continuous operating temperature: ≤350℃

 Gasket: glass fiber

 Humidity: ≤100% RH

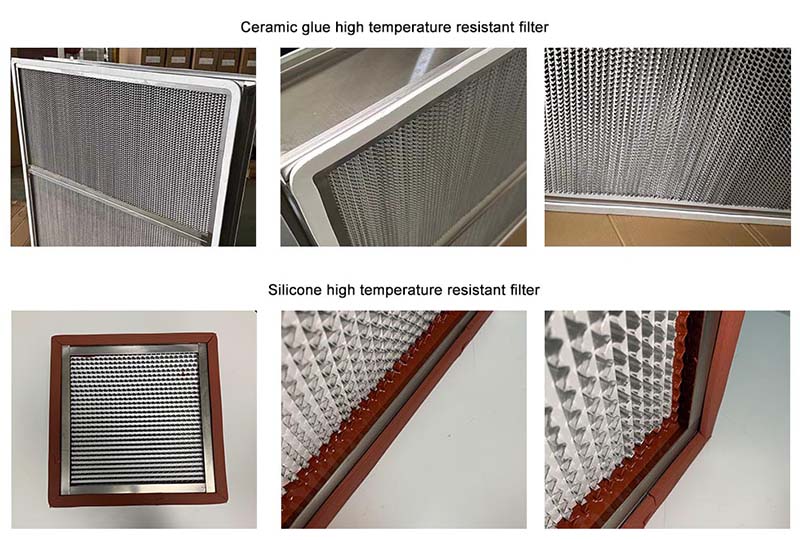

 Sealant: ceramic glue

Recommended maximum final resistance: 500Pa





High temperature HEPA filters Technical parameters

Model	Size (mm)	Air volume (m³/h)	Initial resistance (Pa)	Efficiency
HT-305-305-150-T350	305*305*150	250	250	H13
HT-610-305-150-T350	610*305*150	500	250	H13
HT-610-610-150-T350	610*610*150	1000	250	H13
HT-915-610-150-T350	915*610*150	1500	250	H13
HT-305-305-292-T350	305*305*292	435	250	H13
HT-610-305-292-T350	610*305*292	870	250	H13
HT-610-610-292-T350	610*610*292	1740	250	H13
HT-915-610-292-T350	915*610*292	2620	250	H13
