The Fan filter Unit (FFU) developed and produced by Anne Parker has achieved great success and has been fully approved and praised by customers.
The HEPA Fan filter Unit (FFU) developed and produced by Anne Parker has achieved great success and has been fully approved and praised by customers. Currently, FFU fan filter unit is a low-noise, high-efficiency purification system on the market, which can easily provide high-quality filtered air for clean rooms.
Our product range ranges from simple speed control systems designed for individual FFUs to integrated monitoring systems developed for large clean rooms. Among them, we have dozens of different design schemes and product construction for customers to choose from. Anne has developed a high-tech, user-friendly computer software system that allows up to 64,516 FFUs to be monitored through a single central computer monitoring system, and additional monitoring systems can be designed according to customer requirements.

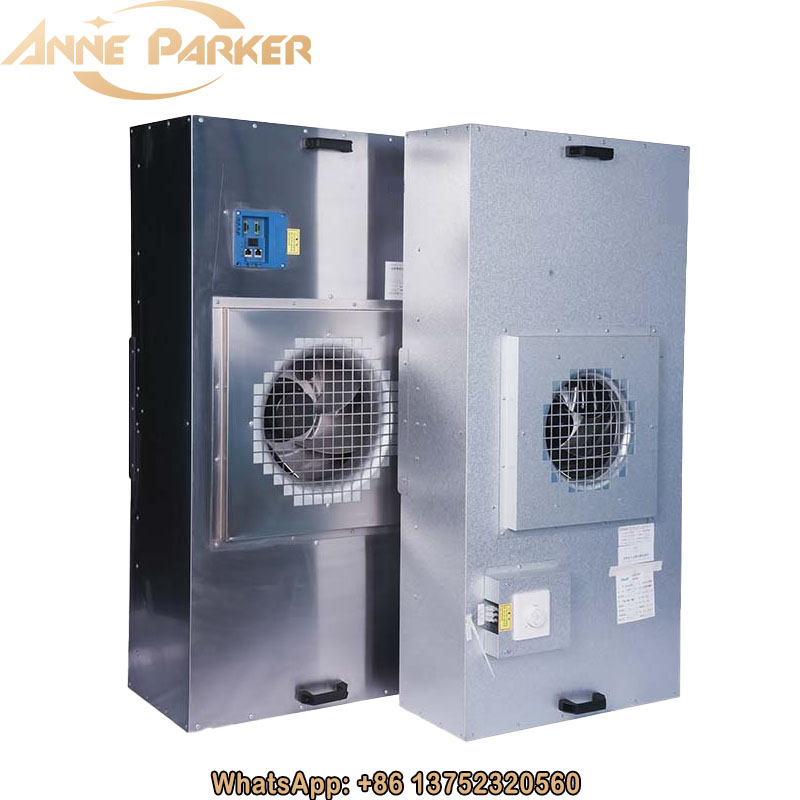

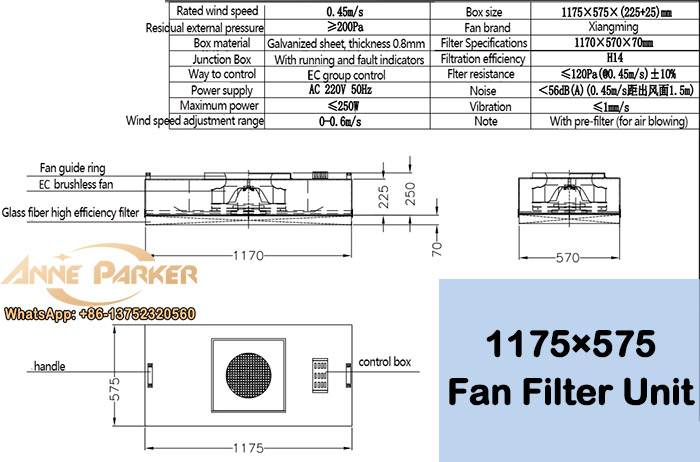

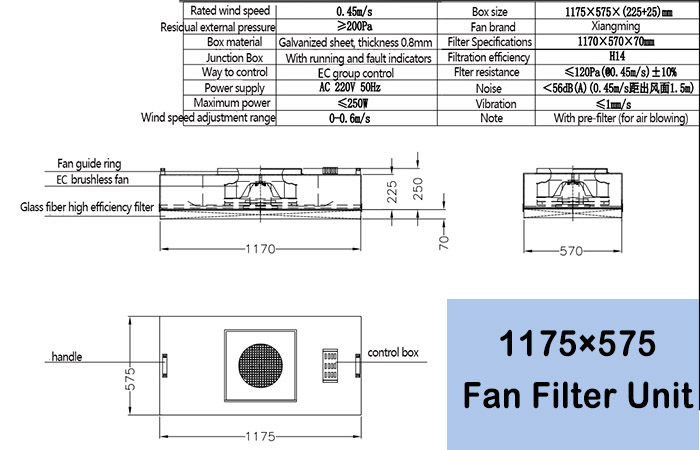

Cleanroom 2×4 HEPA FFU Fan Filter Unit Low Noise
|
Rated wind speed |
0.45m/s |
Box size |
1175*575(225+50)mm |
|
Residual external pressure |
≥200pa |
Fan brand |
XM |
|
Box material |
Galvalume plate, SUS304 |
Filter size |
1170*570*70mm |
|
Junction box |
With running and fault indicators |
Filter efficiency |
H14 |
|
Way to control |
DC group control |
Filter resistance |
≤120pa (0.45m/s) ±10% |
|
Power supply |
AC 220V 50Hz |
Noise |
<56dB |
|
Max power |
≤ 250w |
Vibration |
≤1m/s |
|
Wind speed adjustment range |
0-0.6m/s |
Note |
With pre-filter |
2×4 HEPA fan filter unit Features:
1. FFU system is convenient and flexible, and can be applied to any structure and all levels of clean rooms. It can also be used in other products, such as movable clean room, clean workbench, clean corridor and so on.
2. FFU box made of rust-proof aluminum plate, stainless steel, coated steel plate or powdered steel plate, compact and strong structure, easy to install.
3. Low power consumption and low operating cost.
4. Strong fan can be used for a long time under high static pressure, but at the same time maintain low noise.
5. Our wide range of FFU applications is suitable for all kinds of clean rooms from 10000 to 1.
6. Our FFU system has three speed, five speed local control, three speed remote control (with operation instructions) computer group control, master and slave controller control and other ways.
