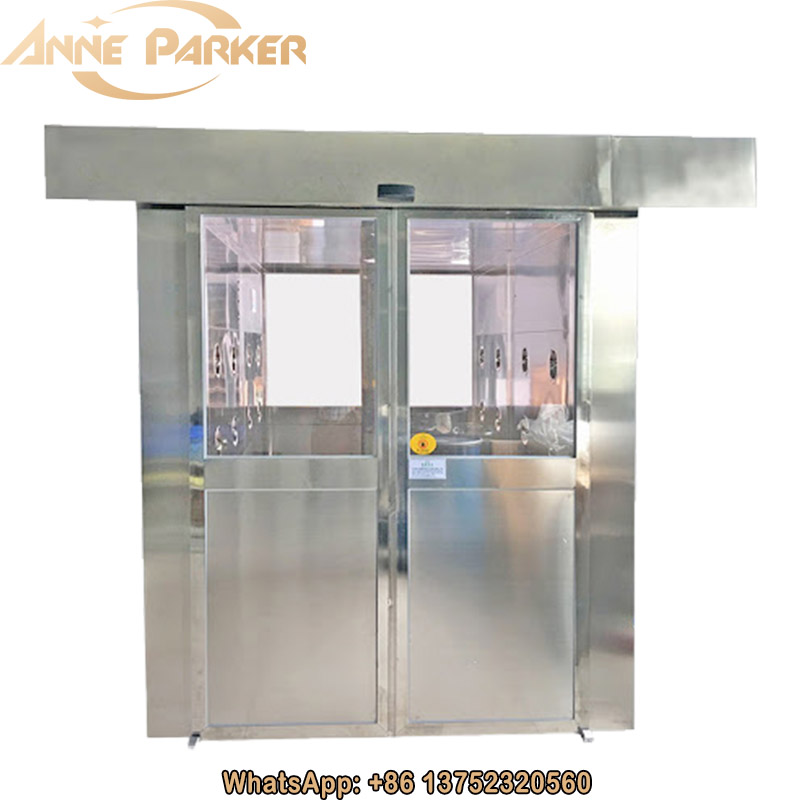

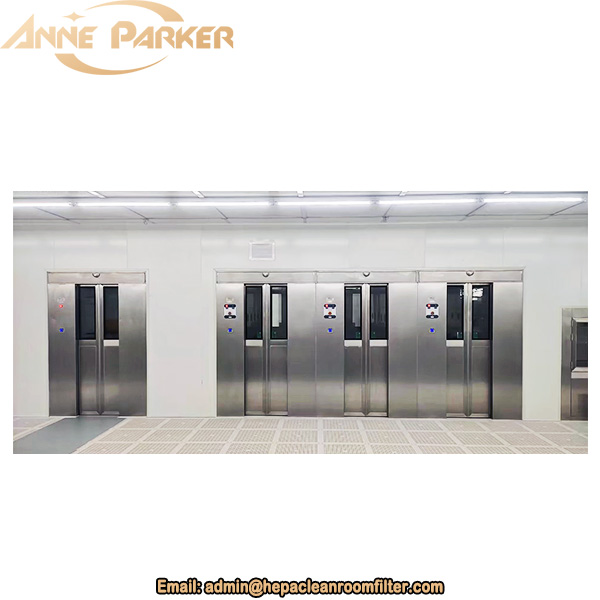

Automatic Sliding Door Cargo Air Shower Cleanroom Chamber Design

Automatic Sliding Door Cargo Air Shower Cleanroom Chamber Design

Cargo air shower Instructions:

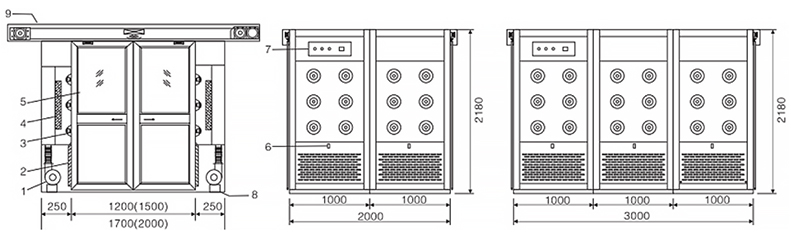

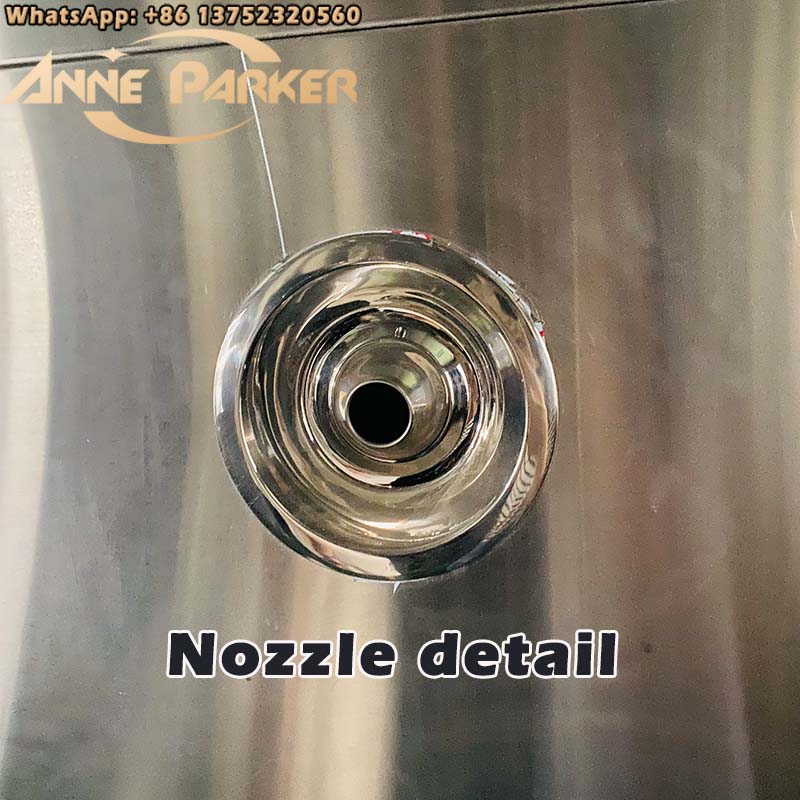

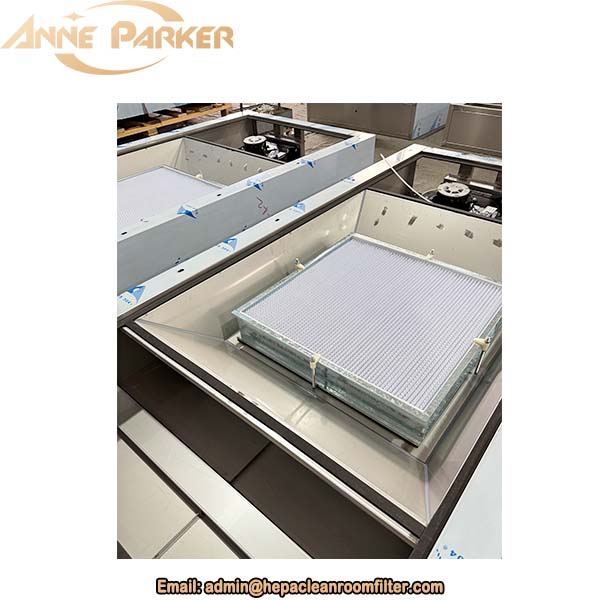

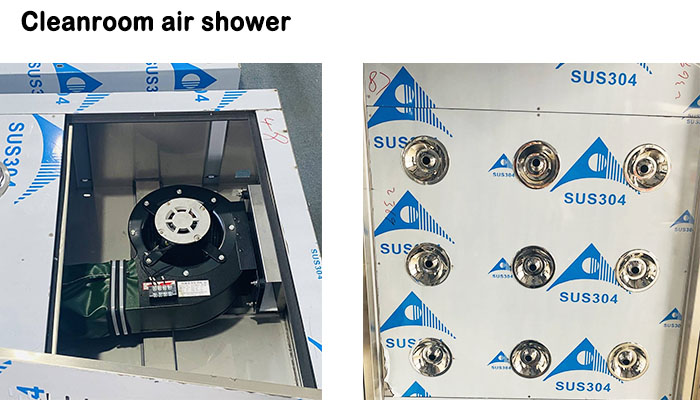

1. Double-speed fan   2. Primary efficiency filter   3. Stainless steel nozzle (with protection net)    4. Mini pleat HEPA filter   5. Tempered glass window   6. Infrared sensor   7. Control panel (with plexiglass cover)     8. Anchor bolts (M12)   9. Import mechanism

Air shower cleanroom Optional accessories:

1. All stainless steel box   2. Stainless steel inner wall   3. Ultraviolet germicidal lamp   4. Antistatic device   5. Hidden door device

Air shower design Optional door opening method:

1. Wireless remote control switch   2. Microwave automatic sensor   3. Non-contact induction switch   4. Contact button switch

Operation procedure of cargo air shower from unclean area to clean area:

      People walk from the unclean area to the outside door of the air shower chamber→ People walk from the clean area to the door of the air shower cabinet→ When they arrive at the induction area, the door will automatically open → After people enter the air shower room, the door will automatically close the front door according to the set time → At this time, people pass the infrared sensor to block the light → After the back door is completely closed, people walk through the front door → the air shower room fan starts to blow → The inside induction area, the front door will open. People go out → according to the set time to finish blowing, people go out, the automatic door opens according to the set time → the inner door opens, people go out → the door is closed, return to the standby state

Air shower chamber Technical parameters
