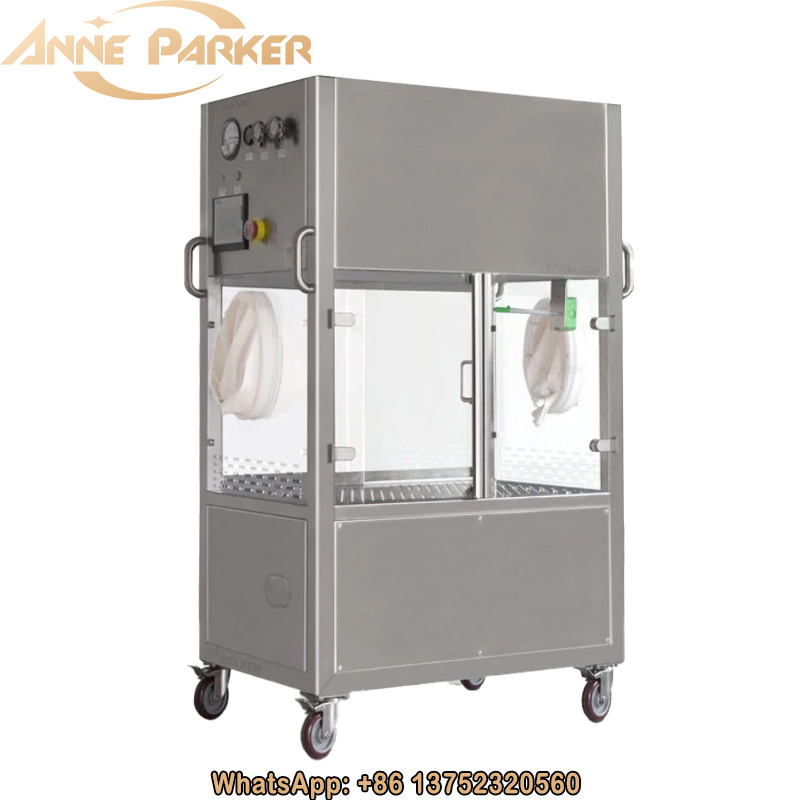

Class A Laminar Flow Transfer Vehicle

Laminar flow transfer vehicle is mainly used in the pharmaceutical industry, the transfer of materials from the filling outlet to the freeze-drying machine, medicine box into the filling line of equipment transfer. The equipment can quickly and efficiently realize the safe and seamless docking of materials and filling isolators (RABS) or freeze-drying machines, ensuring that the transfer and docking of drugs are always under the protection of clean areas, making up for the new generation of air purification products produced by fixed laminar flow covers, air purifiers and other equipment can not meet the cleanliness requirements of certain spaces.

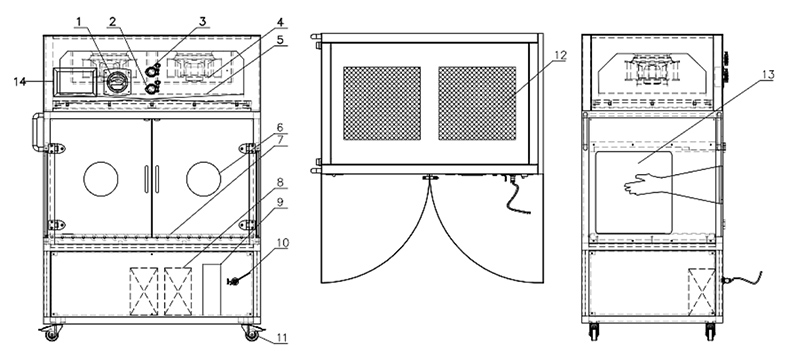

Instructions:

1. Differential pressure table   2. DOP test port   3. PAO injection port   4. Fan   5. Gel seal HEPA filter   6. Glove hole (including gloves)   7. No power roller   8. Battery   9. UPS   10. Charging port   11. Universal caster with brake   12. Primary filter   13. Inlet and outlet   14. Control panel

Product features

1.    The equipment is equipped with four shock-proof universal casters, which can move smoothly in multiple directions;

2.    HEPA filter fan unit (wind speed can be adjusted between 0.364-0.54m/s);

3.    Equipment installation transparent plexiglass, novel structure, easy to observe;

4.    Self-provided rechargeable DC power supply to achieve car wireless;

5.    The body is all made of stainless steel 304 (or 316L) material, the structure is simple and smooth

6.    Easy to clean and disinfect;

7.    Suitable for variable air supply system, wind speed can be stepless adjustment, reliable operation, low energy consumption;

Technical parameters

Note: The specifications listed in the table are for customer's reference only. Class A laminar flow transfer vehicle can be designed and manufactured according to customer's URS document.
