Characteristics
1. Shock-absorbing separate work surface.
2. The door glass adopts push-pull type, with novel structure and easy observation.
3. Horizontal one-way air supply mode, to ensure that each layer of shelf items.
4. In the protection of clean air flow, effectively prevent the pollution of items.
5. Suitable for variable air supply system, wind speed can be adjusted in high and low two levels, reliable operation, low energy consumption, lighting and sterilization system.
6. Digital display control interface, more user-friendly design.
7. Universal casters can be freely mobile, flexible and convenient.

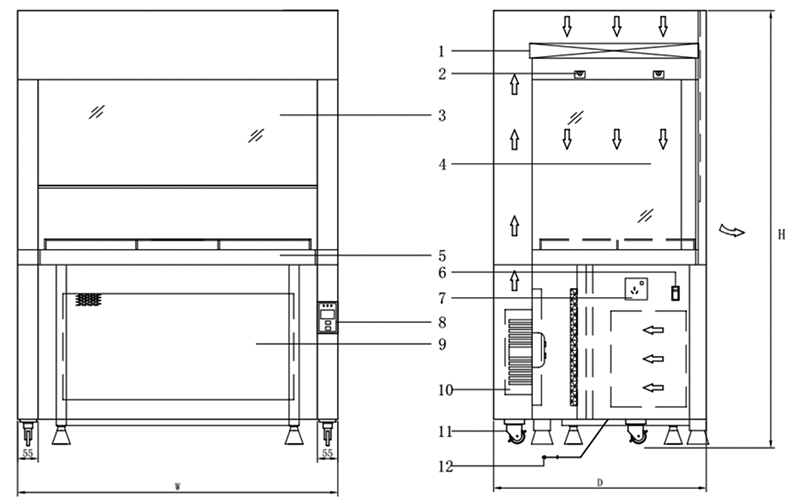

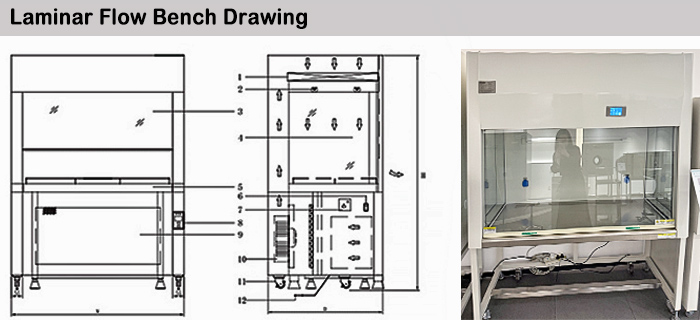

Description:
1. HEPA filter 2. Fluorescent lamp 3. Tempered glass sliding door 4. Side baffle 5. Workbench 6. Main power switch 7. Spare socket 8. Operating panel 9. Primary filter 10. Variable air unit 11. Universal wheel 12. Power cord
Technical parameters
|
Model |
AN-SW-840K |
AN-SW-1300L |
AN-SW-840U |
AN-SW-1300U |
|
Average wind speed |
≥0.3m/s (adjustable) |
|||
|
Cleanliness class |
5 (class 100) |
|||
|
Filtration efficiency |
≥99.99% (@≥0.3um) |
|||
|
Illuminance (Lx) |
≥300 |
|||
|
Noise (dB) |
≥62 |
|||
|
Power supply |
220±22V, 50Hz±1Hz |
|||
|
Rated power (VA) |
300 |
600 |
300 |
600 |
|
Clump count |
/ |
≤0.5 /vessel |
||
|
Work area size W*D*H |
680*650*570 (mm) |
1140*650*720 (mm) |
680*650*570 (mm) |
1140*650*720 (mm) |
|
External size W*D*H |
840*825*1625 (mm) |
1300*825*1175 (mm) |
840*825*1625 (mm) |
1300*825*1775 (mm) |
|
HEPA filter specification and size |
760*610*50 |
610*610*50 |
760*610*50 |
610*610*50 |
|
Fluorescent lamp/UV lamp specification and quantity |
18W*2 |
30W*2 |
18W*1/20W*1 |
30W*1 |
